A Small Part That Protects Your Core Components

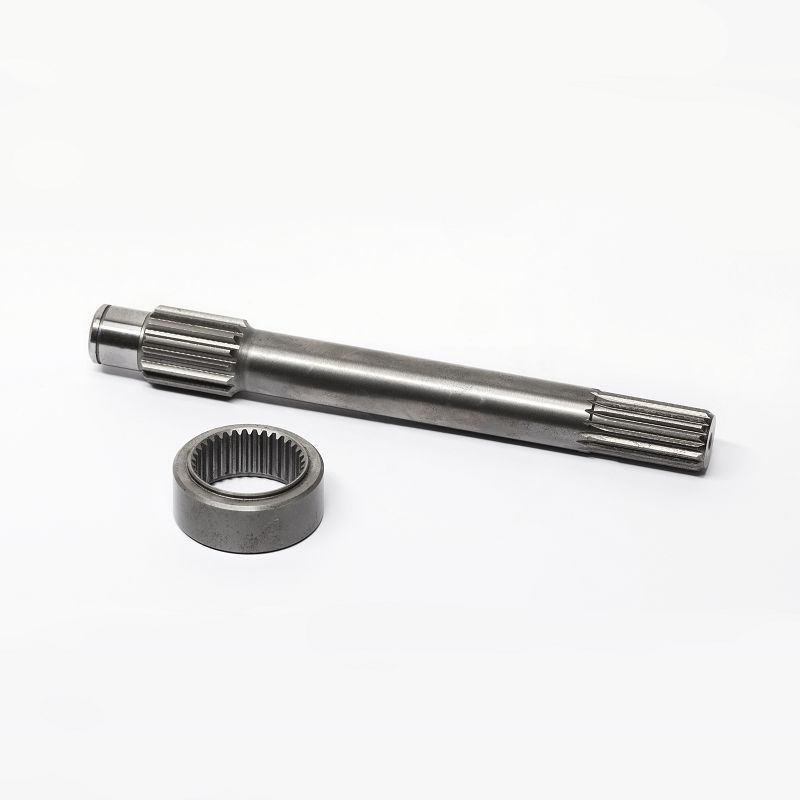

We provide internal spline bushing machining services. These components are also known as sleeves or bearing liners. Taizhou Liuhuan Machinery manufactures these simple ring-shaped parts, which are installed between a shaft and a housing bore.
Their function is to support, position, and reduce wear. As replaceable wear components, they protect more expensive shafts and housings at a lower cost.
Our bushings are widely used in industrial equipment, automotive suspensions, agricultural machinery, and conveyor rollers. We offer customized sizes, materials, and lubrication options to help extend equipment life and reduce maintenance costs.
Our Material Library: The Right Choice for Your Needs
We maintain a wide range of materials to suit different operating conditions.
Bearing steel (GCr15) is used for high-speed, high-precision, and heavy-load applications requiring excellent wear resistance.
High-strength brass (C95400) is suitable for medium speeds and loads, offering good wear resistance and thermal conductivity.
Tin bronze (C93200 / SAE 660) is a well-known bearing material with good impact resistance and conformability.
Cast iron provides good wear resistance, vibration damping, and cost efficiency.
Powder metallurgy oil-impregnated bushings offer self-lubrication for hard-to-access areas.
Engineering plastics such as POM and PTFE composites provide corrosion resistance, light weight, and self-lubricating properties for food and chemical equipment.
All materials comply with ASTM, SAE, or DIN standards.
|
Parameter |
Specification |
| Materials | GCr15, C95400, C93200, Cast Iron, Powder Metal, POM, PTFE |
| Dimensional Tolerance | H7/g6 or Custom |
| Cylindricity | <0.01 mm |
| Wall Thickness Uniformity | <0.05 mm |
| Lubrication Groove Standard | ISO 3548 or Custom |
High Precision for a "Simple" Part
Even for components that appear simple, we maintain strict precision standards. Inner and outer diameter tolerances can be controlled to H7/g6 levels based on your fit requirements. Cylindricity is maintained within 0.01 mm.
If oil grooves or locating holes are required, we machine them with high accuracy, following standards such as ISO 3548 for groove and hole positioning. We can also machine locking screw holes to ensure secure installation.
Wall thickness uniformity is controlled within 0.05 mm to ensure even load distribution.
Surface Finish and Pre-Lubrication for Better Performance
We offer various surface treatments to enhance performance. Phosphating or tin plating can improve running-in characteristics, while hard chrome plating increases wear and corrosion resistance.
If required, we can also provide pre-lubrication using specific greases or solid lubricants.
From rapid prototyping to large-scale production, we deliver cost-effective precision bushings that help maximize equipment stability and service life while minimizing overall cost.
