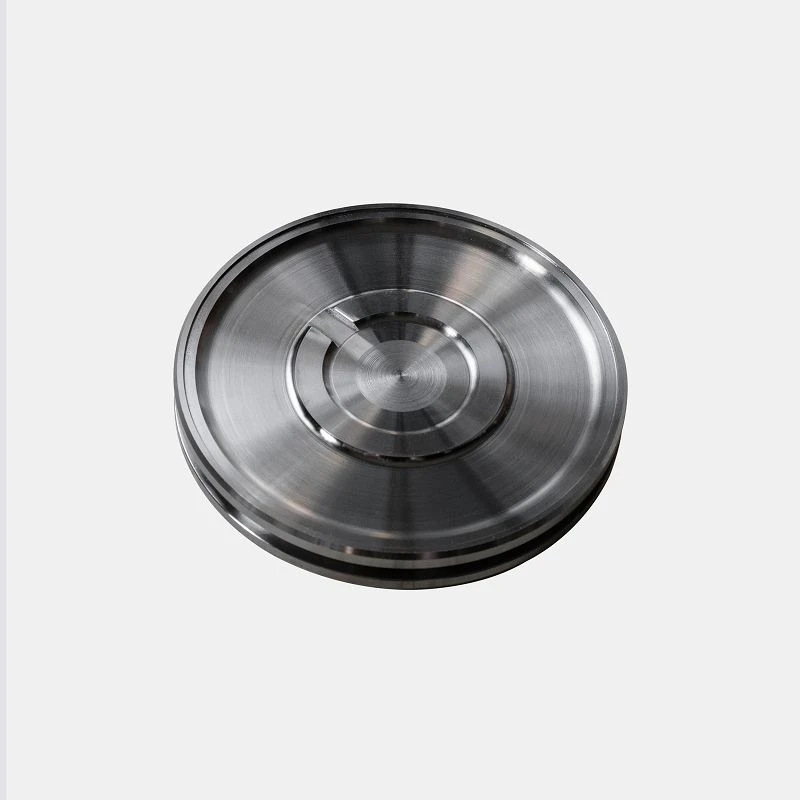

Flange End Connector

In a piping system, the connector is the hub connecting different components-the flange end connector connects to piping or equipment via flange on one end, and to hoses or rigid pipes via threading, welding, or ferrule on the other end, achieving conversion between different connection forms. A substandard connector causes piping leakage, loose connections, pressure loss, or even disconnection under high pressure leading to safety accidents. We make Flange end connectors to get this hub of piping connections right, for reliable piping connections, convenient conversion, and proper sealing.

We use 45# steel, 40Cr, stainless steel 304/316, or brass as the base material, selected per medium and pressure. The flange end face is finish-turned, with flatness within 0.01mm and surface roughness below Ra1.6μm. O-ring grooves or metal gasket sealing faces can be machined on the sealing face. Flange bolt hole pitch circle position accuracy within 0.05mm, ensuring smooth bolt installation. The other end can feature external threads, internal threads, welding ends, ferrule ends, quick-connect ends and other connection forms, with thread precision 6H/6g grade. Reducing conversion, angle conversion (90° elbow, 45° elbow), tees, crosses and other special structures available as needed. Flange end connectors are used in hydraulic piping, pneumatic piping, chemical piping, lubrication systems, and high-pressure testing equipment. Every connector undergoes thread go/no-go gauge testing and hydrostatic testing sampling before shipping. After years of making Flange end connectors, our insight is that the key to flange connectors lies in flange end face precision and thread precision-get these right, and piping connections achieve reliable sealing and convenient assembly/disassembly. Send us your drawings; sample first to verify connection performance.

● Hydraulic piping, high-pressure oil pipes

● Pneumatic piping, lubrication systems

● Chemical piping, petroleum piping

● High-pressure testing equipment, experimental setups

Established in 2009, making metal parts in Yuhuan, Taizhou. Workshop with CNC lathes, machining centers, tapping machines, surface treatment equipment-connectors from blank forming, turning, tapping, surface treatment to inspection, all in one line. Plant over 5,000 sqm, 60+ employees, 100+ CNC machines. Monthly capacity 30,000–150,000 pieces depending on complexity; rush orders accommodated with overtime. No reliance on subcontractors, delivery and quality self-controlled. Supplied piping connector parts to OEMs.

Customization from drawings and samples supported. Flange specifications (PN, DN), connection end form (external thread, internal thread, welding, ferrule, quick-connect), reducing conversion, angle conversion (90°, 45° elbows), tees, crosses all adjustable per drawing, no strict MOQ. Materials: 45# steel, 40Cr, stainless steel 304/316, brass, aluminum alloy, etc., selected per medium and pressure. O-ring sealing, metal gasket sealing, welded sealing and other sealing structures available. Custom samples typically 15–20 working days, shorter for simple processes. Sample fee deductible against bulk orders. Sample first to verify connection performance, then batch.

Operating under IATF 16949. Materials with material certificates. Flange end face: flatness testing and surface roughness testing. Threads: 100% inspected with thread go/no-go gauges. Flange bolt hole position accuracy CMM-sampled. Critical sealing faces 100% inspected. Hydrostatic testing (1.5x rated pressure hold) and thread precision testing available as needed. Surface treatment: coating thickness testing and adhesion testing. Third-party inspection per customer specification accepted, reports accompany goods.
