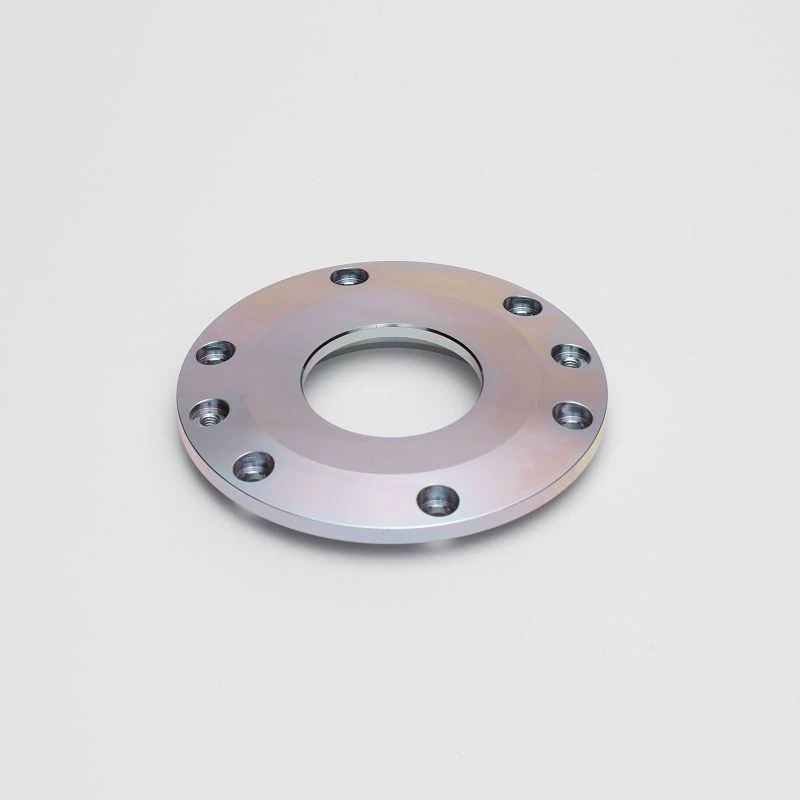

End Face Seal Flange

In high-pressure piping systems, the end face seal of a flange is the most prone-to-failure link-uneven end face, scratched sealing surface, or uneven bolt preloading can all cause leakage. And once high-pressure medium leaks, it is not only wasteful but can also cause safety accidents. The end face seal flange is designed to solve this problem-through precision-machined sealing end faces and appropriate sealing elements, achieving zero-leakage connections under high pressure. We make End face seal flanges to get the sealing link of piping connections right.

We use 45# steel, 40Cr, stainless steel 304/316, or aluminum alloy as the base material, selected per medium and pressure. The sealing end face is finish-turned or ground, with flatness controlled within 0.01mm and surface roughness below Ra0.8μm; critical sealing faces can reach Ra0.4μm. Flange bolt hole pitch circle position accuracy within 0.05mm, ensuring even bolt preloading. O-ring grooves, metal gasket sealing faces, lens gasket sealing faces and other sealing structures can be machined. Welding necks, threaded ends, quick-connect ends and other connection forms available as needed. End face seal flanges are used in hydraulic piping, pneumatic piping, chemical piping, and high-pressure testing equipment. Every flange undergoes sealing face full inspection and hydrostatic testing sampling before shipping. After years of making End face seal flanges, we have found that the key to end face sealing lies in the flatness and roughness of the sealing face-get these right, and zero leakage is achievable even under high pressure. Send us your drawings; sample first to verify sealing performance.

● Hydraulic piping, high-pressure oil pipes

● Pneumatic piping, compressed air systems

● Chemical piping, petroleum piping

● High-pressure testing equipment, experimental setups

Customization from drawings and samples supported. Flange specifications (PN, DN), sealing structure (O-ring, metal gasket, lens gasket), connection end form (welding, threading, quick-connect) all adjustable per drawing, no strict MOQ. Materials: 45# steel, 40Cr, stainless steel 304/316, aluminum alloy, brass, etc., selected per medium temperature, pressure, and corrosion. Reducing flanges, high-pressure flanges, non-standard flanges and other custom structures available. Custom samples typically 15–20 working days, shorter for simple processes. Sample fee deductible against bulk orders. Sample first to verify sealing performance, then batch.

Operating under IATF 16949. Materials with material certificates. Sealing end face: flatness testing (optical flat or dial indicator) and surface roughness testing. Bolt hole position accuracy on CMM. Critical sealing faces 100% inspected. Hydrostatic testing (1.5x rated pressure hold) and helium mass spectrometer leak detection available as needed. Third-party inspection per customer specification accepted, reports accompany goods.

Export plywood wooden boxes. Flange sealing faces coated with rust preventive oil and protected with film to prevent scratches; flanges separated by dividers to prevent collision. VCI rust inhibitor strips inside boxes. Shipping marks, product name, quantity, gross/net weight labeled externally. All export-reinforced packaging. EXW and FOB supported. If issues during transit, provide photo/video evidence within 3 days; we verify and replace/refund as appropriate. Logistics issues: full assistance in claims with forwarder.
